IMD成型機
- 品牌：博菱
- 型號：BL109-5T
109R系列快速熱壓成型機
|
型 號 Model |
單 位 Unit |
BL109R-5T |
BL109R-10T |
BL109R-30T |
BL109R-50T |
BL109R60T |
|
|
公 稱 壓 力 Nominal force Out put |
KN |
50 |
100 |
300 |
500 |
600 |
|
|
液體最大工作壓力 Maximum hydraulic working pressure |
MPa |
7 |
20 |
20 |
20 |
20 |
|
|
回 程 力 Back storke force |
KN |
3 |
1.9 |
3.2 |
4.2 |
5.2 |
|
|
機架臺面距地面高度 Height of tale above floor |
mm |
780 |
780 |
780 |
780 |
780 |
|
|
最 大 開 口 距 離 Biggest operational height |
mm |
300 |
400 |
400 |
500 |
500 |
|
|
壓 塊 最 大 行 程 Maximum stroke of the ram |
mm |
200 |
300 |
300 |
400 |
400 |
|
|
工作臺有效面積 Dimensions of table |
左 右 Left-right |
mm |
450 |
600 |
800 |
1000 |
1200 |
|
前 后 Front-back |
mm |
300 |
450 |
600 |
600 |
600 |
|
|
滑塊壓頭速度 Speed of slide |
下行速度 Speed of Down |
mm/s |
≥140 |
≥188 |
≥188 |
≥210 |
≥210 |
|
工作速度 Work of speed |
mm/s |
≥140 |
≥30 |
≥19 |
≥18 |
≥18 |
|
|
回程速度 Speed of etuming |
mm |
≥140 |
≥158 |
≥130 |
≥144 |
≥144 |
|
|
壓 塊主幾輪廓 長X寬X高 Overal dimensions of the machine |
KW |
700X1100X1850 |
900X1300X1850 |
1100X1700X2200 |
1300X1700X2300 |
1500X1700X2400 |
|
|
電 機 功 率 +電熱功率 Motor Power +Galvanothermy Power |
KW |
2.2+3.0 |
2.2+4.4 |
3.7+6.0 |
3.7+8.4 |
3.7+10.8 |
|

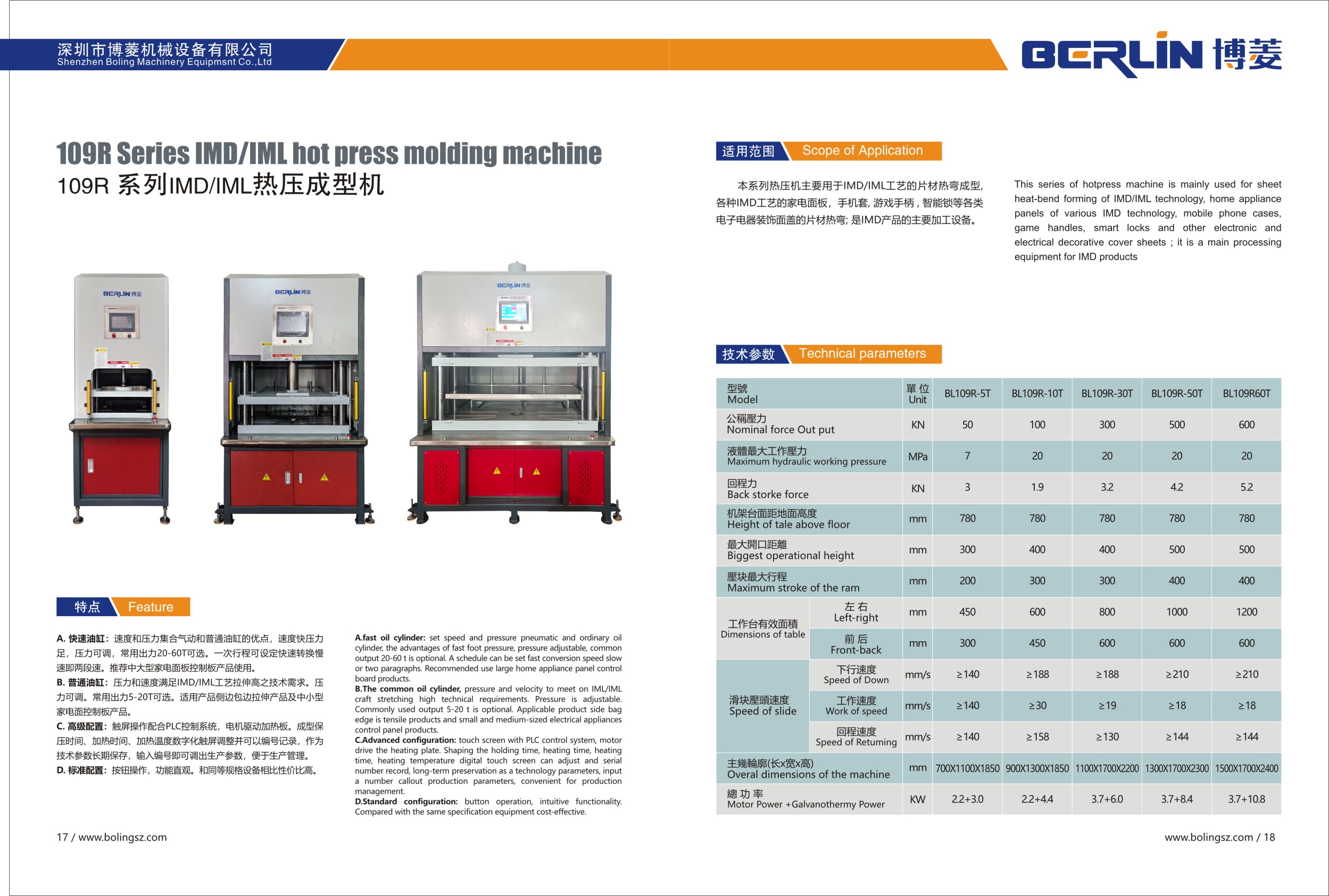

109R 系列IMD/IML熱壓成型機
109R Series IMD/IML hot press molding machine
設備配置選型 Device configuration
-
快速油缸：速度和壓力集合氣動和普通油缸的優點，速度快壓力足，壓力可調，常用出力20-60T可選。一次行程可設定快速轉換慢速即兩段速。推薦中大型家電面板控制板產品使用。
-
普通油缸：壓力和速度滿足IMD/IML工藝?yán)旄咧夹g(shù)需求。壓力可調。常用出力5-20T可選。適用產品側邊包邊拉伸產品及中小型家電面控制板產品。
-
高級配置：觸屏操作配合PLC控制系統，電機驅動加熱板。成型保壓時間、加熱時間、加熱溫度數字化觸屏調整并可以編號記錄，作為技術參數長期保存，輸入編號即可調出生產參數，便于生產管理。
-
標準配置：按鈕操作，功能直觀。和同等規格設備相比性價比高。
-
fast oil cylinder: set speed and pressure pneumatic and ordinary oil cylinder, the advantages of fast foot pressure, pressure adjustable, common output 20-60 t is optional. A schedule can be set fast conversion speed slow or two paragraphs. Recommended use large home appliance panel control board products.
-
The common oil cylinder, pressure and velocity to meet on IML/IML craft stretching high technical requirements. Pressure is adjustable. Commonly used output 5-20 t is optional. Applicable product side bag edge is tensile products and small and medium-sized electrical appliances control panel products.
-
Advanced configuration: touch screen with PLC control system, motor drive the heating plate. Shaping the holding time, heating time, heating time, heating temperature digital touch screen can adjust and serial number record, long-term preservation as a technology parameters, input a number callout production parameters, convenient for production management.
-
Standard configuration: button operation, intuitive functionality. Compared with the same specification equipment cost-effective.
109R適用范圍 Scope of Application:
1.本系列熱壓機主要用于IMD/IML工藝的片材熱彎成型, 各種IMD工藝的家電面板，手機套, 游戲手柄 , 智能鎖等各類電子電器裝飾面蓋的片材熱彎; 是IMD產品的主要加工設備Scope of 109Q scope of application
This series of hotpress machine is mainly used for sheet heat-bend forming of IMD/IML technology, home appliance panels of various IMD technology, mobile phone cases, game handles, smart locks and other electronic and electrical decorative cover sheets ; it is a main processing equipment for IMD products
